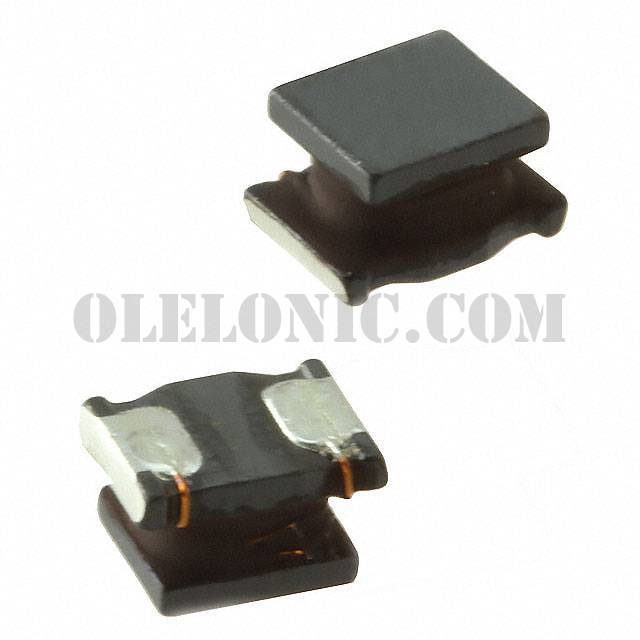

LQH43PN3R3M26L

Part NumberLQH43PN3R3M26L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 3.3UH 2.1A 52 MOHM SMD

DatasheetLQH43PNyyyy26L Ref Sheet

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µH Shielded Wirewound Inductor 2.1A 62.4mOhm Max 1812 (4532 Metric)

To learn about the specification of LQH43PN3R3M26L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43PN3R3M26L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43PN3R3M26L.
We are offering LQH43PN3R3M26L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH43PN3R3M26L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH43PNyyyy26L Ref Sheet
Standard Package	500
Manufacturer	Murata Electronics North America
Series	LQH43
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3µH
Tolerance	±20%
Current Rating (Amps)	2.1A
Current - Saturation	1.8A
Shielding	Shielded
DC Resistance (DCR)	62.4mOhm Max
Q @ Freq	-
Frequency - Self Resonant	40MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
