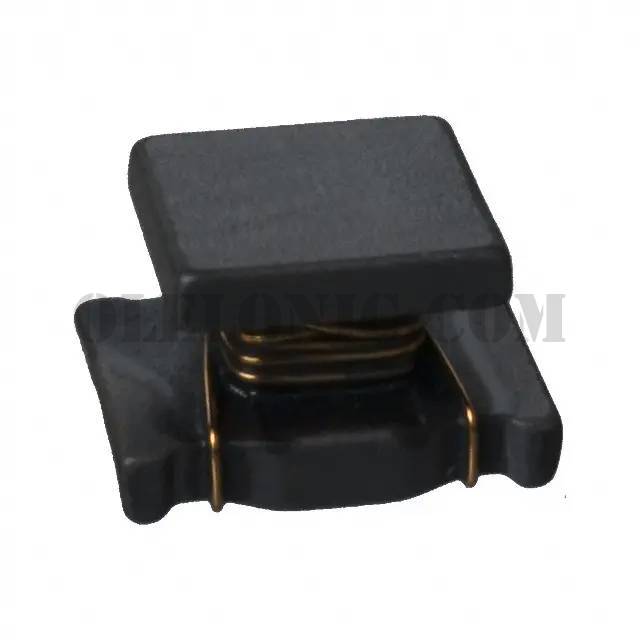

LQH43PH100M26L

Part NumberLQH43PH100M26L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 10UH 1.17A 176.4 MOHM

DatasheetLQH43PHyyyy26L Series Spec

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Wirewound Inductor 1.17A 176.4mOhm Max Nonstandard

To learn about the specification of LQH43PH100M26L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43PH100M26L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43PH100M26L.
We are offering LQH43PH100M26L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH43PH100M26L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH43PHyyyy26L Series Spec
Standard Package	500
Manufacturer	Murata Electronics North America
Series	LQH43
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	1.17A
Current - Saturation	1.05A
Shielding	Shielded
DC Resistance (DCR)	176.4mOhm Max
Frequency - Self Resonant	20MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
