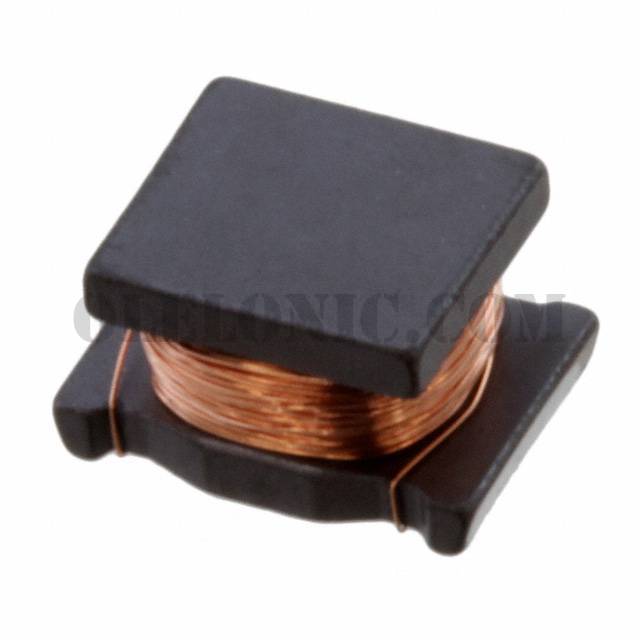

LQH43NN561J03L

Part NumberLQH43NN561J03L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 560UH 70MA 14.5 OHM

DatasheetLQH43NNyyyy03L Series Specification

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µH Unshielded Wirewound Inductor 70mA 14.5Ohm Max 1812 (4532 Metric)

To learn about the specification of LQH43NN561J03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43NN561J03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43NN561J03L.
We are offering LQH43NN561J03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH43NN561J03L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH43NNyyyy03L Series Specification
Standard Package	500
Manufacturer	Murata Electronics North America
Series	LQH43
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	560µH
Tolerance	±5%
Current Rating (Amps)	70mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	14.5Ohm Max
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	2.7MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
