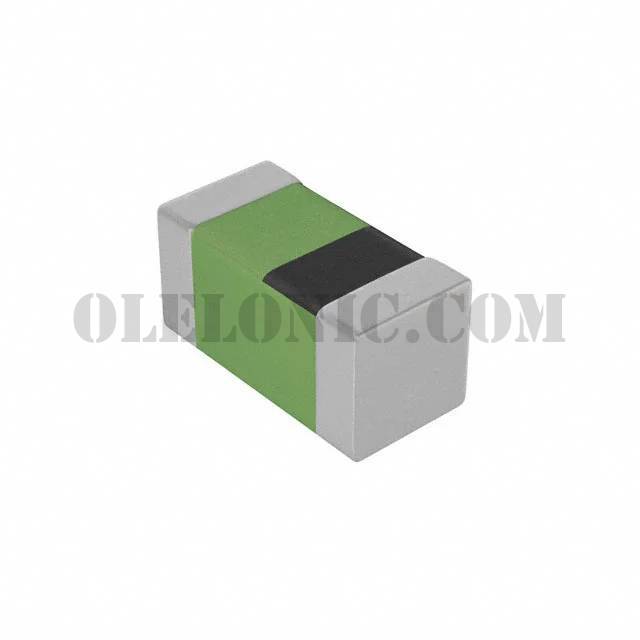

LQG15HS2N7S02D

Part NumberLQG15HS2N7S02D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 2.7NH 800MA 150 MOHM

DatasheetLQG15HSyyyy02D Series Spec

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.7nH Unshielded Multilayer Inductor 800mA 150mOhm Max 0402 (1005 Metric)

To learn about the specification of LQG15HS2N7S02D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQG15HS2N7S02D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQG15HS2N7S02D.
We are offering LQG15HS2N7S02D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQG15HS2N7S02D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQG15HSyyyy02D Series Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQG15
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Air
Inductance	2.7nH
Tolerance	±0.3nH
Current Rating (Amps)	800mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	6GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.022" (0.55mm)
