LQA40B200C

Part NumberLQA40B200C

ManufacturerPower Integrations

DescriptionDIODE ARRAY GP 200V 20A TO263AB

DatasheetLQA40T200C, LQA40B200C

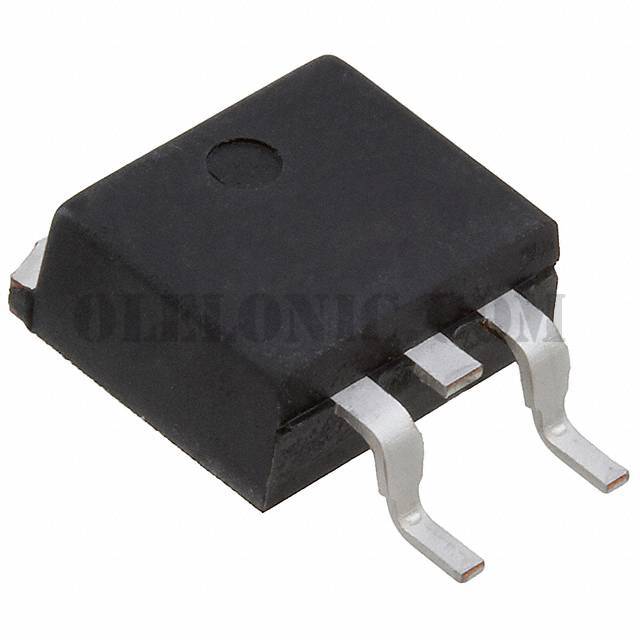

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 20A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

To learn about the specification of LQA40B200C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQA40B200C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQA40B200C.
We are offering LQA40B200C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQA40B200C - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	LQA40T200C, LQA40B200C
Standard Package	800
Manufacturer	Power Integrations
Series	Qspeed™
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	20A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 20A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	17ns
Current - Reverse Leakage @ Vr	500µA @ 200V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263AB
