LQA10N200C

Part NumberLQA10N200C

ManufacturerPower Integrations

DescriptionDIODE ARRAY GP 200V 5A TO252

DatasheetLQA10T200C, LQA10N200C

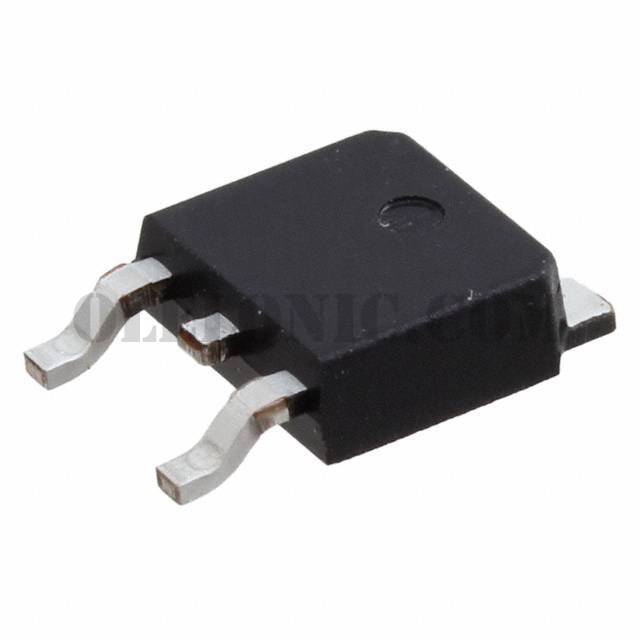

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 5A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63

To learn about the specification of LQA10N200C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQA10N200C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQA10N200C.
We are offering LQA10N200C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQA10N200C - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	LQA10T200C, LQA10N200C
Standard Package	1
Manufacturer	Power Integrations
Series	Qspeed™
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	13.9ns
Current - Reverse Leakage @ Vr	250µA @ 200V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252, (D-Pak)
