Home/Product Catalog/Capacitors / Aluminum Electrolytic Capacitors/ LNR2D682MSE

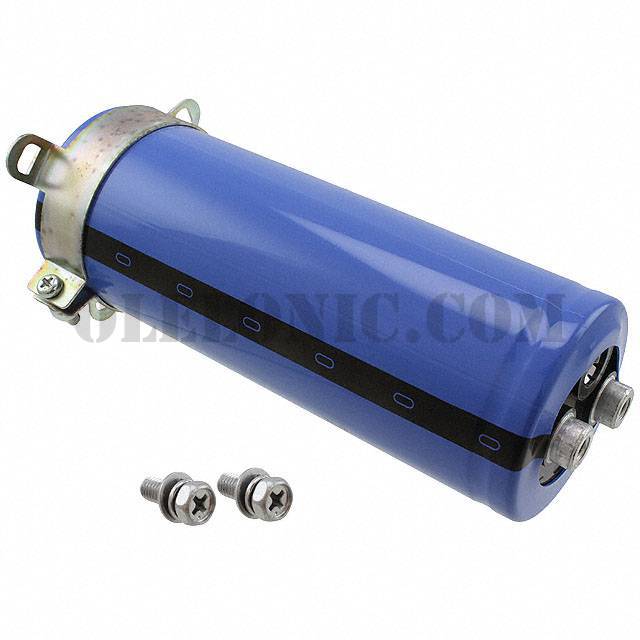

LNR2D682MSE

LNR2D682MSE

Part NumberLNR2D682MSE

ManufacturerNichicon

DescriptionCAP ALUM 6800UF 20% 200V SCREW

DatasheetLNR Series

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6800µF 200V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C

To learn about the specification of LNR2D682MSE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LNR2D682MSE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LNR2D682MSE.
We are offering LNR2D682MSE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LNR2D682MSE - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LNR Series
Standard Package	25
Manufacturer	Nichicon
Series	LNR
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	7.3A @ 120Hz
Ripple Current @ High Frequency	8.76A @ 10kHz
Lead Spacing	0.866" (22.00mm)
Size / Dimension	2.008" Dia (51.00mm)
Height - Seated (Max)	5.630" (143.00mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
