Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	LMB2S Thru LMB10S
Standard Package	5000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	950mV @ 400mA
Current - Reverse Leakage @ Vr	5µA @ 800V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	LMBS-1
Base Part Number	LMB8

MDB8S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-MicroDIP/SMD,	View
CBRHDSH2-40 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-HD DIP,	View
KMB215STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 150V Surface Mount MBS,	View
SDB156-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount SDB-1,	View
MDB6S	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-MicroDIP/SMD,	View
CDBHD160L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 60V Surface Mount Mini-Dip (TO-269AA),	View
CD-HD01	Bourns Inc., Bridge Rectifier Single Phase Schottky 100V Surface Mount,	View
DBLS159G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
SDB207-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDB-1,	View
DBLS207G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
CBRLDSH2-40 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-LPDIP,	View
DF005S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 50V Surface Mount 4-SDIP,	View

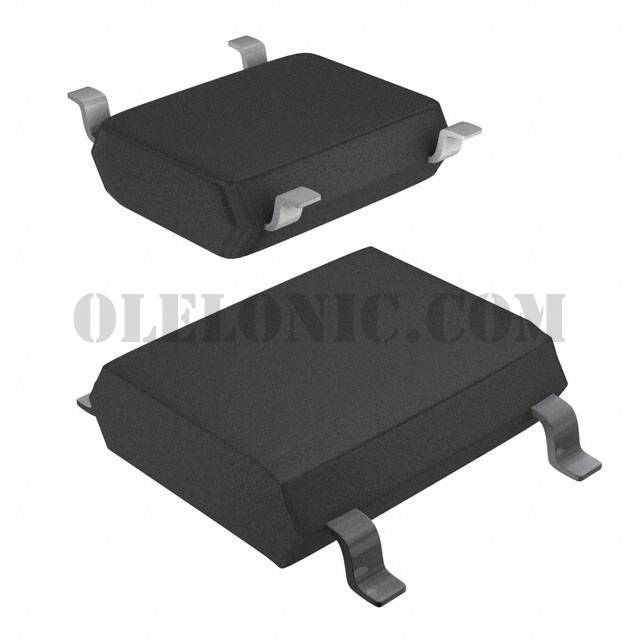

LMB8S-TP
