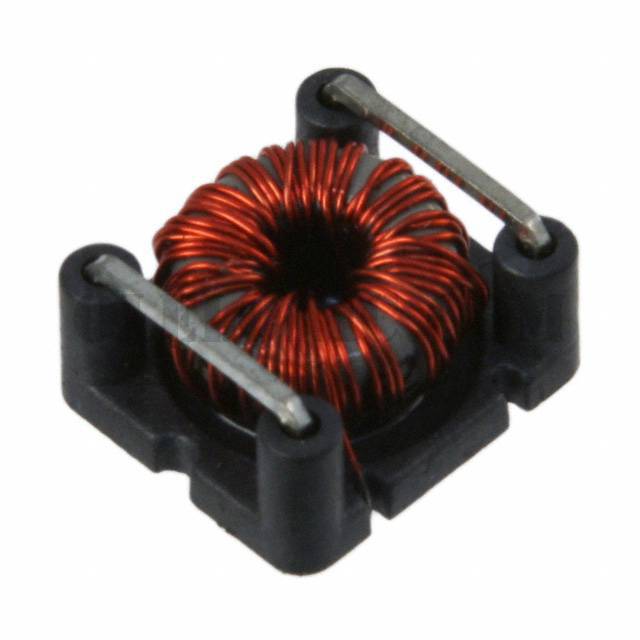

LLST-200

Part NumberLLST-200

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 200UH 795MA 400 MOHM

DatasheetLLST(R) Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description200µH Shielded Toroidal Inductor 795mA 400mOhm Max Nonstandard

To learn about the specification of LLST-200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LLST-200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LLST-200.
We are offering LLST-200 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LLST-200 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

LLST(R) Series

Standard Package

100

Manufacturer

API Delevan Inc.

Series

LLST

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Nickel Iron

Inductance

200µH

Tolerance

±15%

Current Rating (Amps)

795mA

Current - Saturation

460mA

Shielding

Shielded

DC Resistance (DCR)

400mOhm Max

Q @ Freq

Frequency - Self Resonant

3.2MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.475" L x 0.420" W (12.07mm x 10.67mm)

Height - Seated (Max)

0.290" (7.37mm)
