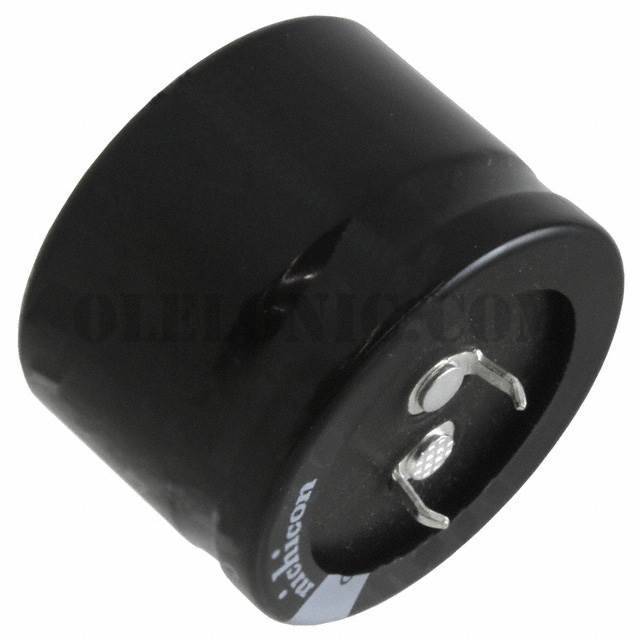

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLS Series
Standard Package	200
Manufacturer	Nichicon
Series	LLS
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.59A @ 120Hz
Ripple Current @ High Frequency	2.2737A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LLS2E681MELB	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2V471MELB	Nichicon, 470µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1C123MELZ	Nichicon, 12000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2D152MELC	Nichicon, 1500µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2W221MELA	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1J472MELA	Nichicon, 4700µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1C223MELA	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1H392MELZ	Nichicon, 3900µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2C272MELC	Nichicon, 2700µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1H123MELC	Nichicon, 12000µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2G151MELZ	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1E153MELB	Nichicon, 15000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View

LLS2W221MELC

Part NumberLLS2W221MELC
