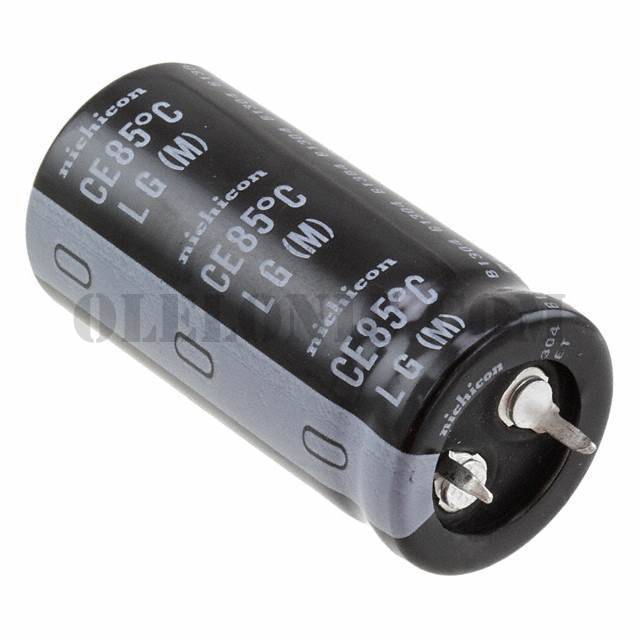

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLG Series
Standard Package	250
Manufacturer	Nichicon
Series	LLG
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.5A @ 120Hz
Ripple Current @ High Frequency	3.75A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LLG2D272MELC45	Nichicon, 2700µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2E681MELA35	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2E681MELZ45	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C392MELC50	Nichicon, 3900µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2W151MELZ30	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D102MELB30	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D122MELZ50	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2G561MELB40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C152MELZ50	Nichicon, 1500µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2E152MELB50	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2W181MELZ35	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C332MELC45	Nichicon, 3300µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View

LLG2E681MELZ45

Part NumberLLG2E681MELZ45
