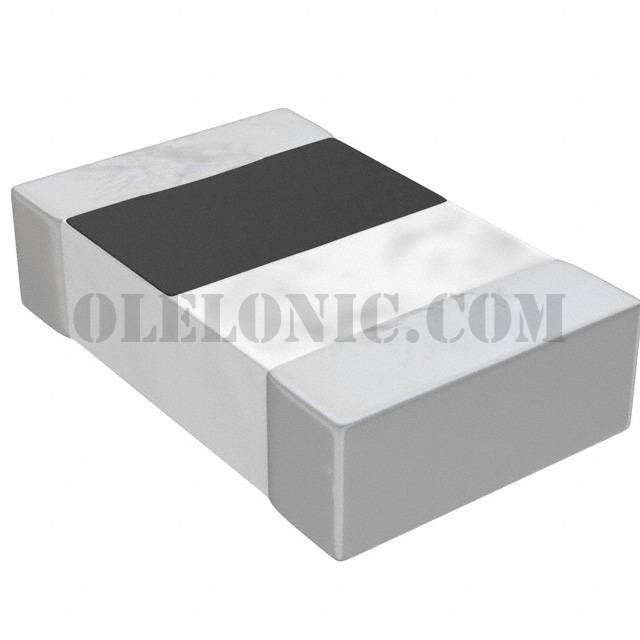

LL2012-F1N8S

Part NumberLL2012-F1N8S

ManufacturerToko America Inc.

DescriptionFIXED IND 1.8NH 300MA 100 MOHM

DatasheetLL2012-F Series

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.8nH Unshielded Multilayer Inductor 300mA 100mOhm Max 0805 (2012 Metric)

To learn about the specification of LL2012-F1N8S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LL2012-F1N8S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LL2012-F1N8S.
We are offering LL2012-F1N8S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LL2012-F1N8S - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

LL2012-F Series

Standard Package

Manufacturer

Toko America Inc.

Series

LL2012-F

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Multilayer

Material - Core

Ceramic

Inductance

1.8nH

Tolerance

±0.3nH

Current Rating (Amps)

300mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

100mOhm Max

Q @ Freq

45 @ 800MHz

Frequency - Self Resonant

6GHz

Ratings

Operating Temperature

-40°C ~ 100°C

Inductance Frequency - Test

100MHz

Mounting Type

Surface Mount

Package / Case

0805 (2012 Metric)

Supplier Device Package

0805 (2012 Metric)

Size / Dimension

0.079" L x 0.049" W (2.00mm x 1.25mm)

Height - Seated (Max)

0.031" (0.80mm)
