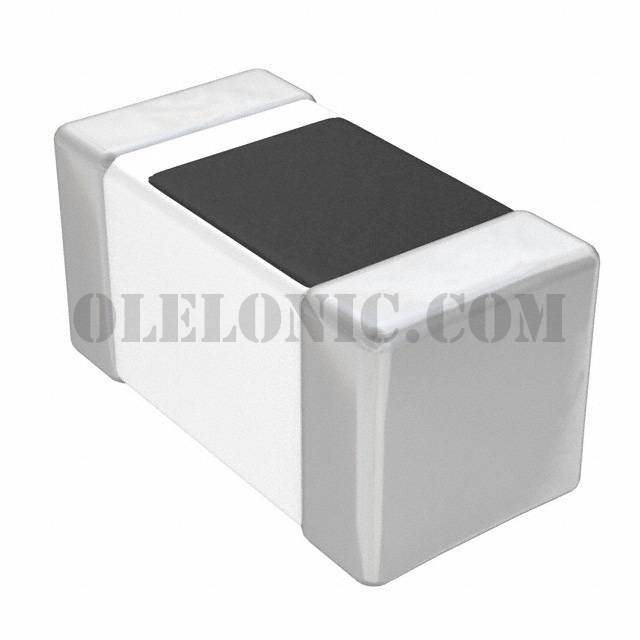

LL1005-FH8N2K=P3

Part NumberLL1005-FH8N2K=P3

ManufacturerToko America Inc.

DescriptionFIXED IND 8.2NH 300MA 390 MOHM

DatasheetLL1005FH Type

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8.2nH Unshielded Multilayer Inductor 300mA 390mOhm Max 0402 (1005 Metric)

To learn about the specification of LL1005-FH8N2K=P3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LL1005-FH8N2K=P3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LL1005-FH8N2K=P3.
We are offering LL1005-FH8N2K=P3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LL1005-FH8N2K=P3 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

LL1005FH Type

Standard Package

Manufacturer

Toko America Inc.

Series

LL1005-FH

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Multilayer

Material - Core

Ceramic

Inductance

8.2nH

Tolerance

±10%

Current Rating (Amps)

300mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

390mOhm Max

Q @ Freq

12 @ 100MHz

Frequency - Self Resonant

4.1GHz

Ratings

Operating Temperature

-40°C ~ 100°C

Inductance Frequency - Test

100MHz

Mounting Type

Surface Mount

Package / Case

0402 (1005 Metric)

Supplier Device Package

0402 (1005 Metric)

Size / Dimension

0.039" L x 0.020" W (1.00mm x 0.50mm)

Height - Seated (Max)

0.024" (0.60mm)
