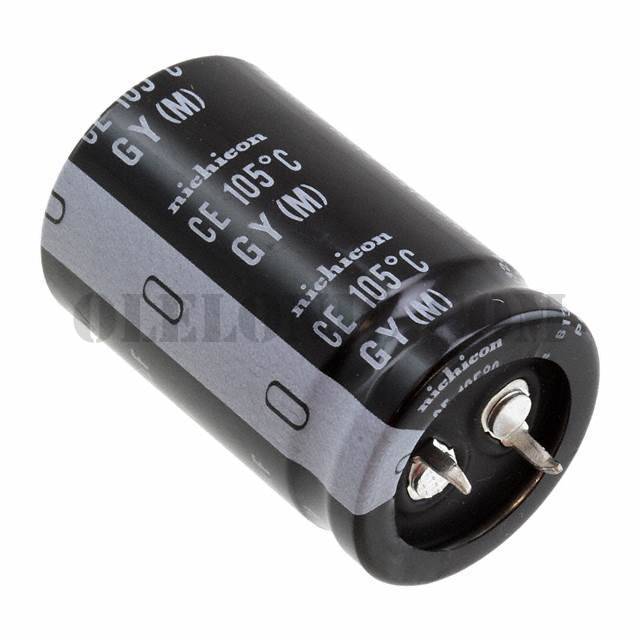

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGY Series
Standard Package	250
Manufacturer	Nichicon
Series	LGY
Packaging	Bulk
Part Status	Active
Capacitance	5600µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.3A @ 120Hz
Ripple Current @ High Frequency	2.645A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGY1J272MELB25	Nichicon, 2700µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1V223MELC50	Nichicon, 22000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1J272MELA35	Nichicon, 2700µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1J562MELB45	Nichicon, 5600µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E103MELA35	Nichicon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H682MELB35	Nichicon, 6800µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1H103MELC40	Nichicon, 10000µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C223MELA45	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A222MELA50	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY2A472MELC50	Nichicon, 4700µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1C123MELA30	Nichicon, 12000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View
LGY1E103MELB30	Nichicon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGY	View

LGY1H562MELA40

Part NumberLGY1H562MELA40
