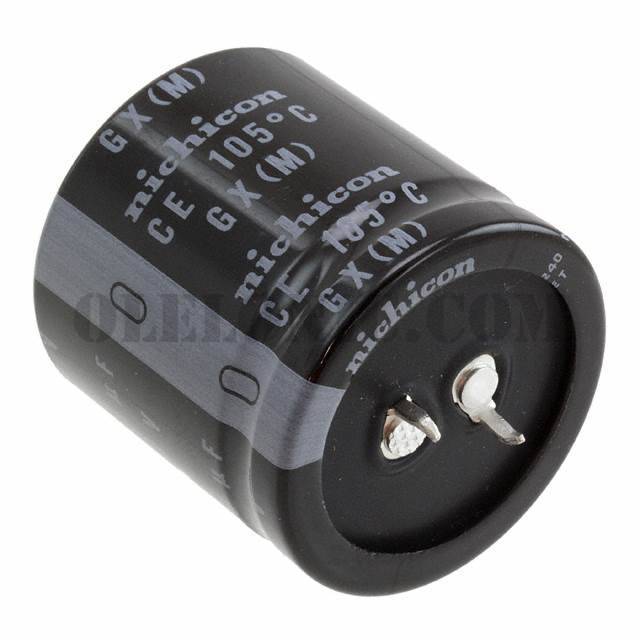

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGX Series
Standard Package	200
Manufacturer	Nichicon
Series	LGX
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.88A @ 120Hz
Ripple Current @ High Frequency	4.32A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGX2D681MELZ40	Nichicon, 680µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2H680MELA25	Nichicon, 68µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2H271MELC40	Nichicon, 270µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2D391MELZ30	Nichicon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2E102MELC35	Nichicon, 1000µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2G561MELC40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2E152MELC45	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2W221MELA40	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2H151MELA45	Nichicon, 150µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2W391MELB50	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2H221MELB45	Nichicon, 220µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View
LGX2D152MELB50	Nichicon, 1500µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C, LGX	View

LGX2D122MELC35

Part NumberLGX2D122MELC35
