Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGW Series
Standard Package	200
Manufacturer	Nichicon
Series	LGW
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.79A @ 120Hz
Ripple Current @ High Frequency	2.5597A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

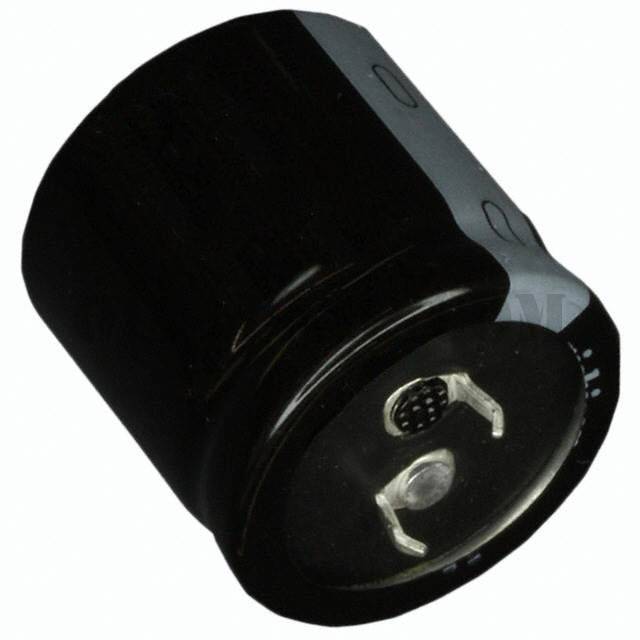

Package / Case	Radial, Can - Snap-In

LGW2D102MELA45	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E681MELZ50	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2W391MELC40	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2D821MELZ45	Nichicon, 820µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E331MELZ30	Nichicon, 330µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2W221MELA45	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E182MELC50	Nichicon, 1800µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E152MELC45	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E122MELC40	Nichicon, 1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2W151MELA35	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2E122MELB50	Nichicon, 1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View
LGW2W271MELC30	Nichicon, 270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGW	View

LGW2G221MELB30

Part NumberLGW2G221MELB30
