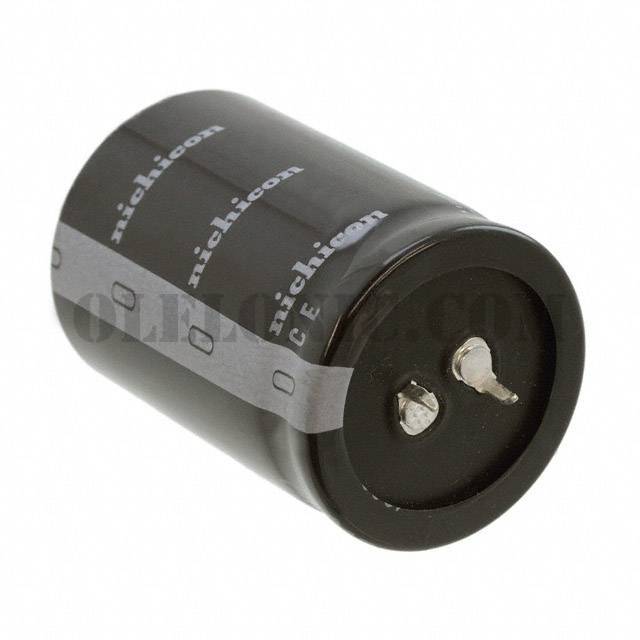

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGN Series
Standard Package	200
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.99A @ 120Hz
Ripple Current @ High Frequency	2.8457A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGN2Z102MELB30	Nichicon, 1000µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2Z152MELB40	Nichicon, 1500µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2V271MELA35	Nichicon, 270µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D102MELA45	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2G121MELZ30	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2C821MELB25	Nichicon, 820µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D182MELB50	Nichicon, 1800µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2G181MELA30	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2Z152MELC30	Nichicon, 1500µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2W391MELB50	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGNW6331MELB35	Nichicon, 330µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2H271MELB50	Nichicon, 270µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View

LGN2W561MELC50

Part NumberLGN2W561MELC50
