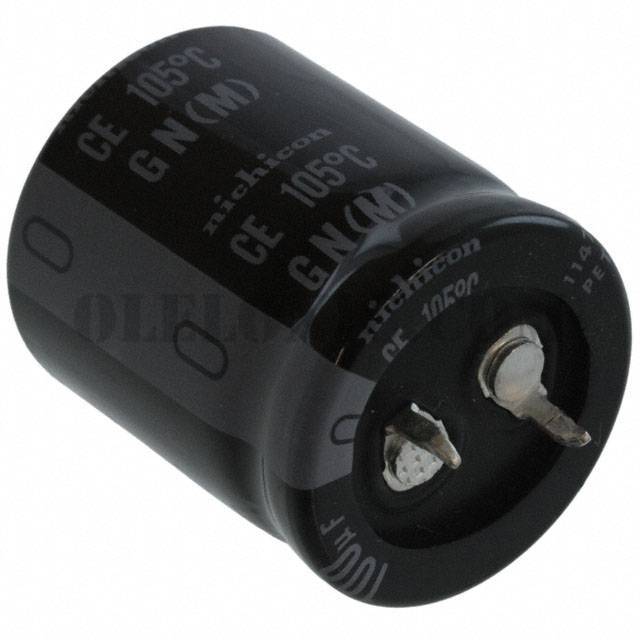

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGN Series
Standard Package	250
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	650mA @ 120Hz
Ripple Current @ High Frequency	929.5mA @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGN2C681MELZ35	Nichicon, 680µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D561MELY40	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2C272MELC45	Nichicon, 2700µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2Z222MELC40	Nichicon, 2200µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGNW6271MELA40	Nichicon, 270µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2G391MELB40	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2V331MELA40	Nichicon, 330µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGNW6471MELB45	Nichicon, 470µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2C681MELA25	Nichicon, 680µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2P122MELC35	Nichicon, 1200µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2V181MELA25	Nichicon, 180µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2X181MELC45	Nichicon, 180µF 600V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGN	View

LGN2H101MELA30

Part NumberLGN2H101MELA30
