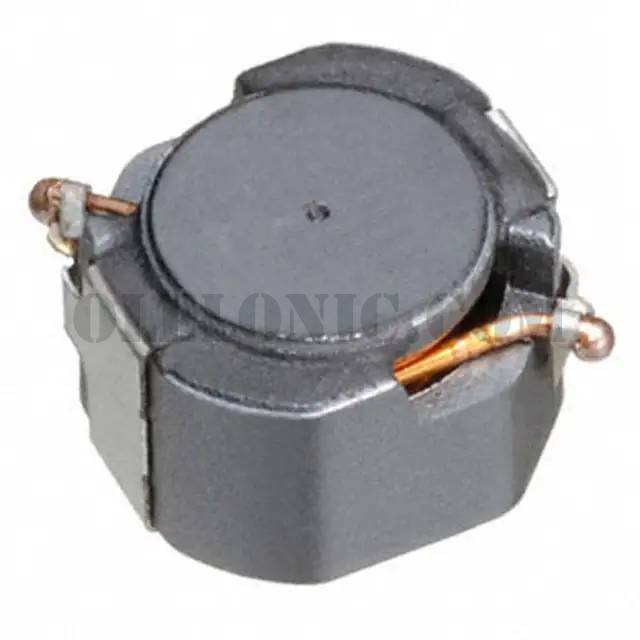

LGJ7045TC-470M-D
LGJ7045TC-470M-D
Part Number LGJ7045TC-470M-D
Description FIXED IND 47UH 1.2A 150 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 47µH Shielded Wirewound Inductor 1.2A 150mOhm Nonstandard
To learn about the specification of LGJ7045TC-470M-D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LGJ7045TC-470M-D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LGJ7045TC-470M-D.
We are offering LGJ7045TC-470M-D for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
LGJ7045TC-470M-D - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet LGJ7045TC-D Series Brief
Standard Package 1
Manufacturer TDK Corporation
Series LGJ
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47µH
Tolerance ±20%
Current Rating (Amps) 1.2A
Current - Saturation 1.3A
Shielding Shielded
DC Resistance (DCR) 150mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.283" L x 0.272" W (7.20mm x 6.90mm)
Height - Seated (Max) 0.177" (4.50mm)
