Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGJ Series Datasheet
Standard Package	250
Manufacturer	Nichicon
Series	LGJ
Packaging	Bulk
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	660mA @ 120Hz
Ripple Current @ High Frequency	990mA @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

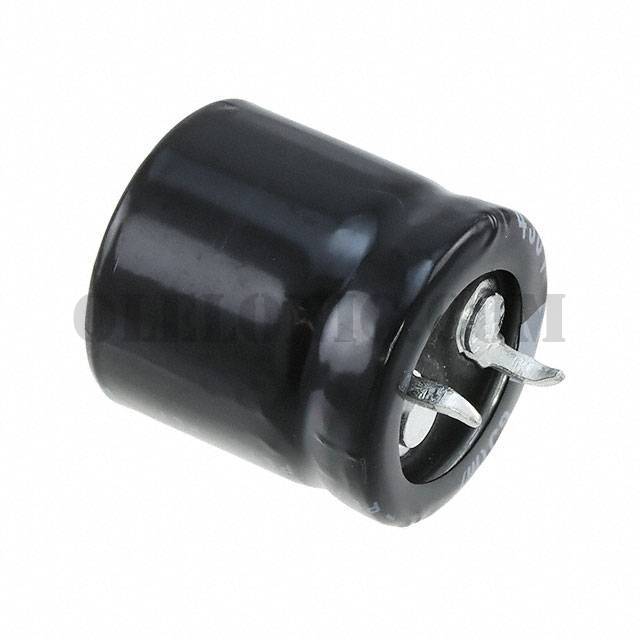

Package / Case	Radial, Can - Snap-In

LGJ2E221MELB	Nichicon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2D151MELZ	Nichicon, 150µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2D221MELB15	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGJ	View
LGJ2G820MELA20	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2C331MELB15	Nichicon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGJ	View
LGJ2D271MELB15	Nichicon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGJ	View
LGJ2D331MELA20	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2G390MELZ15	Nichicon, 39µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGJ	View
LGJ2G470MELA15	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGJ	View
LGJ2G101MELB	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2D221MELZ20	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View
LGJ2G101MELA20	Nichicon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGJ	View

LGJ2E151MELY20

Part NumberLGJ2E151MELY20
