Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	LFXTAL058149Reel Datasheet
Standard Package	3000
Manufacturer	IQD Frequency Products

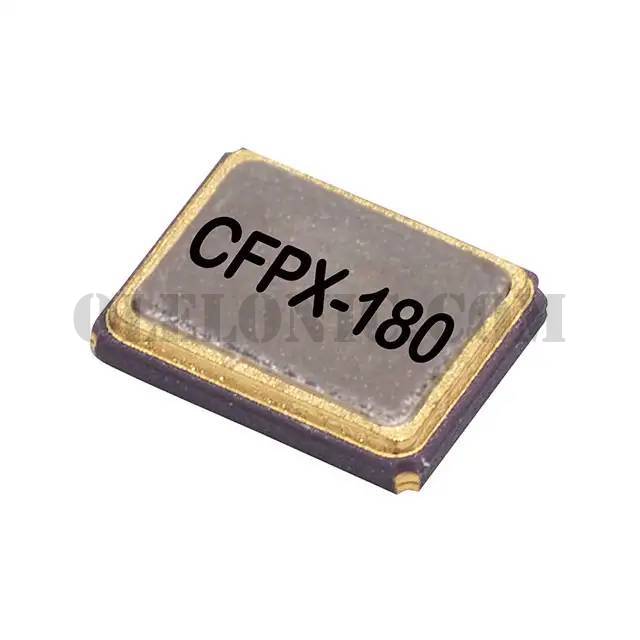

Series	CFPX-180
Packaging	Tape & Reel (TR)
Part Status	Active
Type	MHz Crystal
Frequency	24MHz
Frequency Stability	±10ppm
Frequency Tolerance	±10ppm
Load Capacitance	10pF
ESR (Equivalent Series Resistance)	50 Ohms
Operating Mode	Fundamental
Operating Temperature	-20°C ~ 70°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.031" (0.80mm)

LFXTAL035265REEL	IQD Frequency Products, 20MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL055962REEL	IQD Frequency Products, 30MHz ±50ppm Crystal 12pF 40 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL053099REEL	IQD Frequency Products, 27.12MHz ±10ppm Crystal 10pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL059615REEL	IQD Frequency Products, 16.384MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL061647REEL	IQD Frequency Products, 12MHz ±20ppm Crystal 12pF 120 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL061677REEL	IQD Frequency Products, 32MHz ±50ppm Crystal 12pF 40 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL072787REEL	IQD Frequency Products, 50MHz ±20ppm Crystal 18pF 35 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL035265REEL	IQD Frequency Products, 20MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL059666REEL	IQD Frequency Products, 26MHz ±50ppm Crystal 10pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL070868REEL	IQD Frequency Products, 12MHz ±10ppm Crystal 18pF 120 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL059617REEL	IQD Frequency Products, 18.432MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL072604REEL	IQD Frequency Products, 25MHz ±10ppm Crystal 8pF 50 Ohms 4-SMD, No Lead, CFPX-180	View

LFXTAL058149REEL

Part NumberLFXTAL058149REEL
