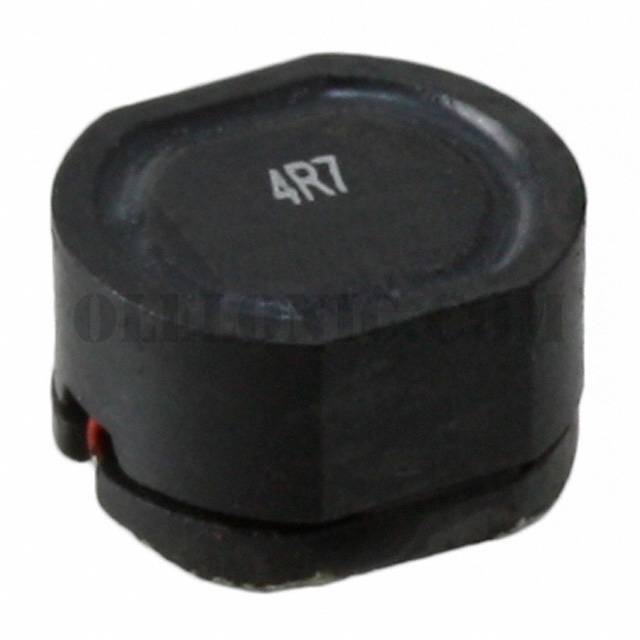

LDS0705-4R7M-R

Part NumberLDS0705-4R7M-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 4.7UH 3.32A 21 MOHM

DatasheetLDS0705 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4.7µH Shielded Wirewound Inductor 3.32A 21mOhm Nonstandard

To learn about the specification of LDS0705-4R7M-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LDS0705-4R7M-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LDS0705-4R7M-R.
We are offering LDS0705-4R7M-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LDS0705-4R7M-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

LDS0705 Series

Standard Package

1000

Manufacturer

Eaton - Electronics Division

Series

LDS0705

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

4.7µH

Tolerance

±20%

Current Rating (Amps)

3.32A

Current - Saturation

3.53A

Shielding

Shielded

DC Resistance (DCR)

21mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.307" L x 0.276" W (7.80mm x 7.00mm)

Height - Seated (Max)

0.197" (5.00mm)
