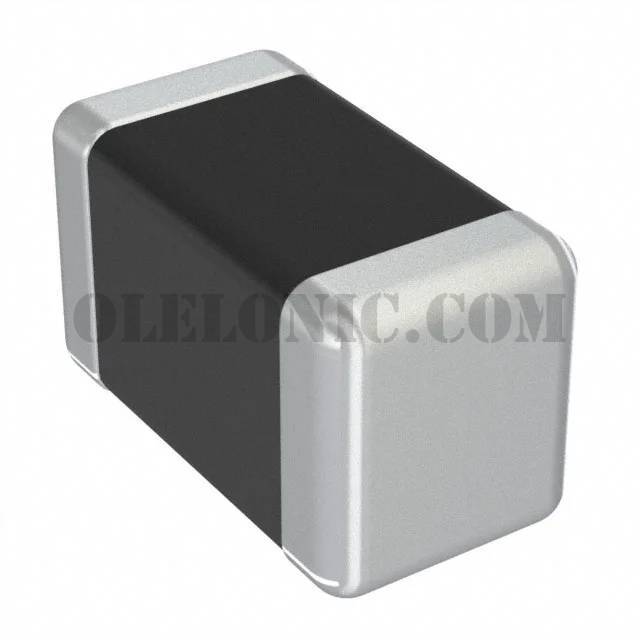

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LB3218T471KV View all Specification
Standard Package	1
Manufacturer	Taiyo Yuden
Series	LB
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	470µH
Tolerance	±10%
Current Rating (Amps)	54mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	18.2Ohm Max
Q @ Freq	-
Frequency - Self Resonant	3.5MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	796kHz
Features	-
Mounting Type	Surface Mount
Package / Case	1207 (3218 Metric)
Supplier Device Package	1207
Size / Dimension	0.126" L x 0.071" W (3.20mm x 1.80mm)
Height - Seated (Max)	0.079" (2.00mm)
