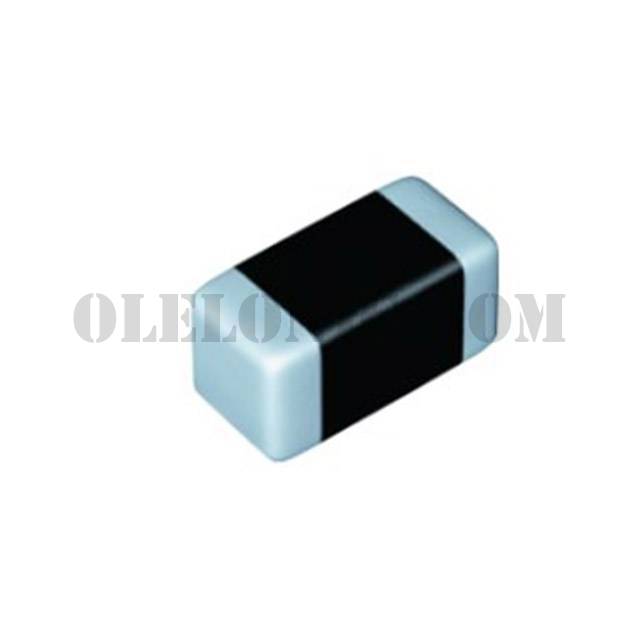

LB3218T150KV


LB3218T150KV

Part NumberLB3218T150KV

Manufacturer

Description

Datasheet

Package / Case1207 (3218 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

LB3218T150KV - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTaiyo Yuden
SeriesLB
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance15µH
Tolerance±10%
Current Rating (Amps)300mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)416mOhm Max
Q @ Freq-
Frequency - Self Resonant25MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test2.52MHz
Features-
Mounting TypeSurface Mount
Package / Case1207 (3218 Metric)
Supplier Device Package1207
Size / Dimension0.126" L x 0.071" W (3.20mm x 1.80mm)
Height - Seated (Max)0.079" (2.00mm)
