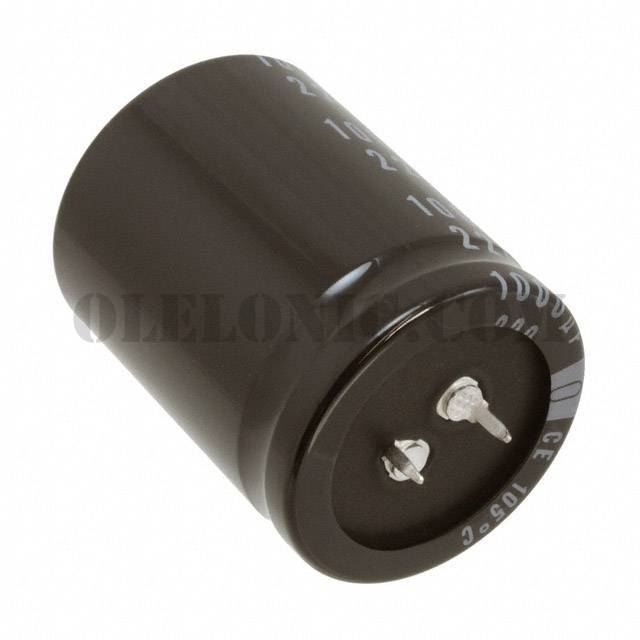

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LAQ Series, 692 Type
Standard Package	200
Manufacturer	Nichicon
Series	LAQ
Packaging	Bulk
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.08A @ 120Hz
Ripple Current @ High Frequency	3.696A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LAQ2P471MELB30	Nichicon, 470µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D122MELB50	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D681MELB30	Nichicon, 680µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P391MELC25	Nichicon, 390µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P102MELC45	Nichicon, 1000µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P391MELB30	Nichicon, 390µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D102MELB45	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G391MELC40	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D331MELZ30	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2D561MELZ45	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2P181MELZ25	Nichicon, 180µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View
LAQ2G820MELZ30	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAQ	View

LAQ2D152MELC45

Part NumberLAQ2D152MELC45
