Categories	Discrete Semiconductor Products / Thyristors - SCRs - Modules
Datasheet	L Series
Standard Package	10
Manufacturer	Sensata-Crydom
Series	-
Packaging	Bulk
Part Status	Active
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes	2 SCRs, 2 Diodes
Voltage - Off State	600V
Voltage - Gate Trigger (Vgt) (Max)	3V
Current - Gate Trigger (Igt) (Max)	100mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Module

L522F	Sensata-Crydom, SCR Module 600V Bridge, Single Phase - SCRs/Diodes (Layout 2) Through Hole Module,	View
250R05L470JV4T	Johanson Technology Inc., 47pF ±5% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L3R9BV4T	Johanson Technology Inc., 3.9pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L2R0BV4T	Johanson Technology Inc., 2pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L680GV4T	Johanson Technology Inc., 68pF ±2% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L1R1BV4T	Johanson Technology Inc., 1.1pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L680GV4T	Johanson Technology Inc., 68pF ±2% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L300GV4T	Johanson Technology Inc., 30pF ±2% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L1R8BV4T	Johanson Technology Inc., 1.8pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L100GV4T	Johanson Technology Inc., 10pF ±2% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L330GV4T	Johanson Technology Inc., 33pF ±2% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View
250R05L0R2AV4T	Johanson Technology Inc., 0.2pF ±0.05pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric),	View

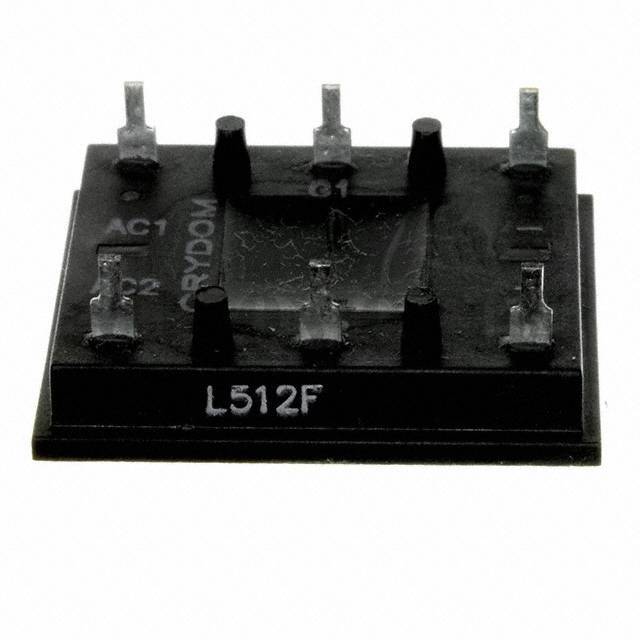

L512F
