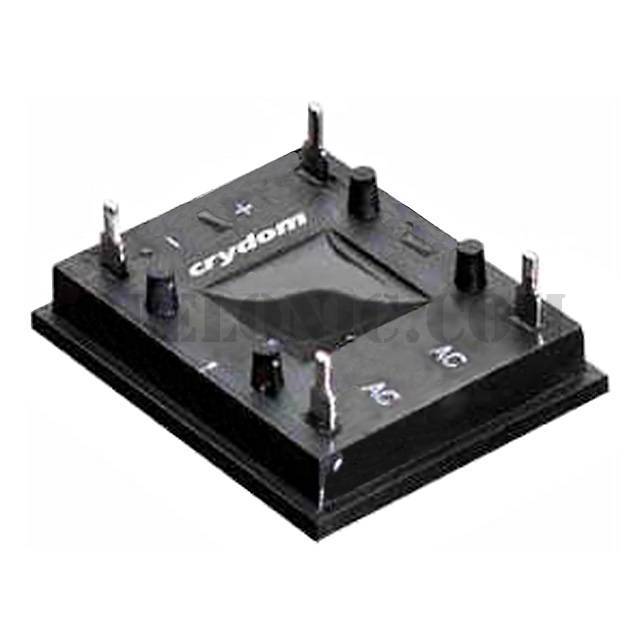

L313

Part NumberL313

ManufacturerSensata-Crydom

DescriptionMODULE SCR/DIODE 15A 280VAC PCB

DatasheetL Series

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 800V Bridge, Single Phase - SCRs/Diodes (Layout 1) Through Hole Module

To learn about the specification of L313, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add L313 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of L313.
We are offering L313 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

L313 - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs - Modules

Datasheet

L Series

Standard Package

Manufacturer

Sensata-Crydom

Series

Packaging

Bulk

Part Status

Not For New Designs

Structure

Bridge, Single Phase - SCRs/Diodes (Layout 1)

Number of SCRs, Diodes

2 SCRs, 2 Diodes

Voltage - Off State

800V

Voltage - Gate Trigger (Vgt) (Max)

2.5V

Current - Gate Trigger (Igt) (Max)

100mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

2250A @ 60Hz

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Through Hole

Package / Case

Module
