KSH31CTF

KSH31CTF

Part NumberKSH31CTF

ManufacturerON Semiconductor

DescriptionTRANS NPN 100V 3A DPAK

DatasheetKSH31/31C

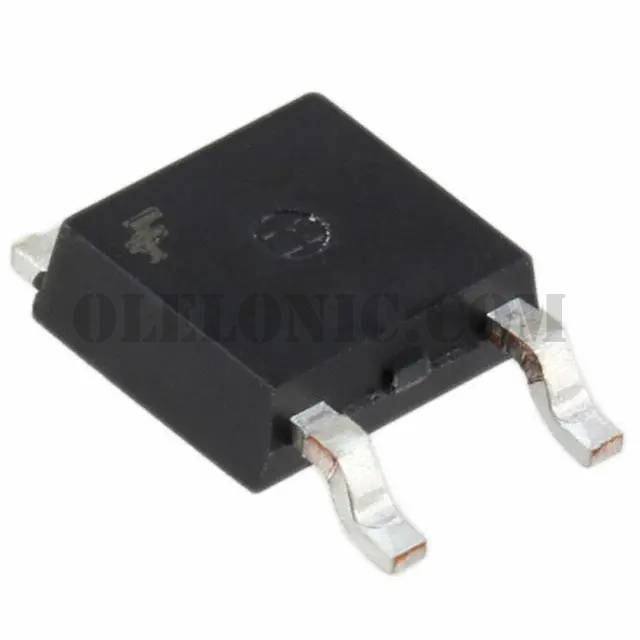

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 100V 3A 3MHz 1.56W Surface Mount D-Pak

To learn about the specification of KSH31CTF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KSH31CTF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of KSH31CTF.
We are offering KSH31CTF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

KSH31CTF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	KSH31/31C
Standard Package	2000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	1.2V @ 375mA, 3A
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 3A, 4V
Power - Max	1.56W
Frequency - Transition	3MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	D-Pak
Base Part Number	KSH31
