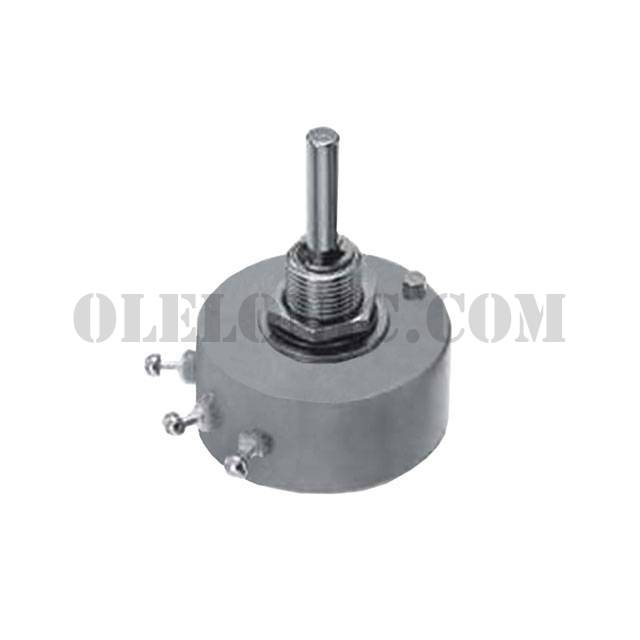

JP-30-5K

Part NumberJP-30-5K

ManufacturerNidec Copal Electronics

DescriptionPOT 5K OHM 1.5W CERMET LINEAR

DatasheetJP30 Series Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Cermet 1.5W Solder Turret

To learn about the specification of JP-30-5K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JP-30-5K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JP-30-5K.
We are offering JP-30-5K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JP-30-5K - Product Attributes

Categories

Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats

Datasheet

JP30 Series Datasheet

Standard Package

Manufacturer

Nidec Copal Electronics

Series

JP-30

Packaging

Bulk

Part Status

Active

Resistance (Ohms)

Tolerance

±2%

Power (Watts)

1.5W

Built in Switch

None

Number of Turns

Taper

Linear

Number of Gangs

Adjustment Type

User Defined

Temperature Coefficient

±150ppm/°C

Rotation

Continuous

Resistive Material

Cermet

Termination Style

Solder Turret

Actuator Type

Round

Actuator Length

1.024" (26.00mm)

Actuator Diameter

0.157" (3.99mm)

Bushing Thread

M9 x 0.75

Mounting Type

Panel Mount

Size - Body

Round - 1.181" Dia x 0.570" H (30.00mm x 14.50mm)
