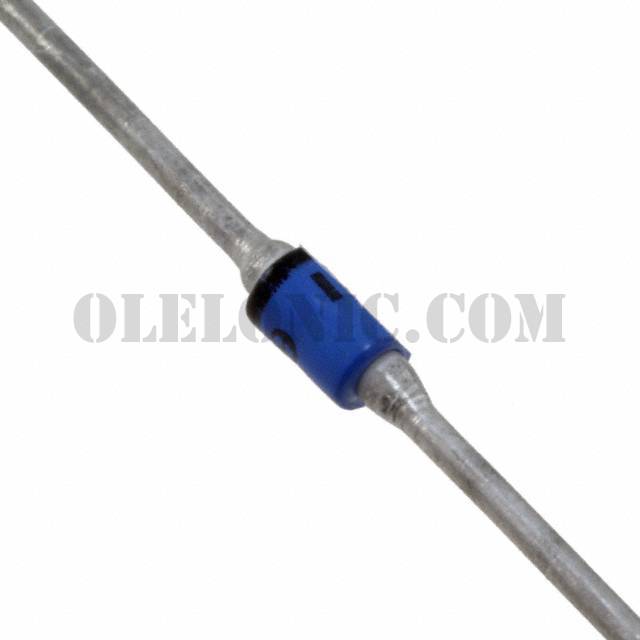

JANTXV1N5623

Part NumberJANTXV1N5623

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 1KV 1A AXIAL

Datasheet1N5615 - 1N5623

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 1A Through Hole

To learn about the specification of JANTXV1N5623, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV1N5623 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV1N5623.
We are offering JANTXV1N5623 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV1N5623 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5615 - 1N5623

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/429

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

1000V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

1.6V @ 3A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

500ns

Current - Reverse Leakage @ Vr

500nA @ 1000V

Capacitance @ Vr, F

15pF @ 12V, 1MHz

Mounting Type

Through Hole

Package / Case

A, Axial

Operating Temperature - Junction

-65°C ~ 175°C
