JANTX2N5416S

JANTX2N5416S

Part NumberJANTX2N5416S

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP 300V 1A TO-39

Datasheet2N5415S,2N5416S

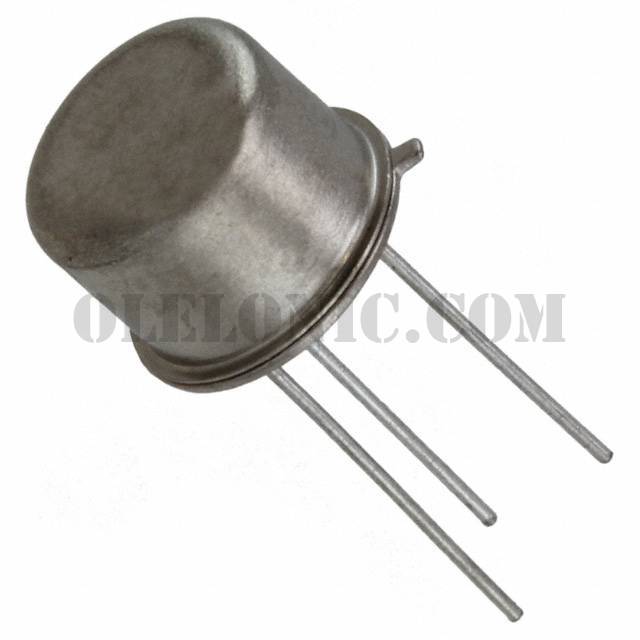

Package / CaseTO-205AD, TO-39-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 300V 1A 750mW Through Hole TO-39

To learn about the specification of JANTX2N5416S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N5416S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N5416S.
We are offering JANTX2N5416S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N5416S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N5415S,2N5416S
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/485
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	300V
Vce Saturation (Max) @ Ib, Ic	2V @ 5mA, 50mA
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 50mA, 10V
Power - Max	750mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
