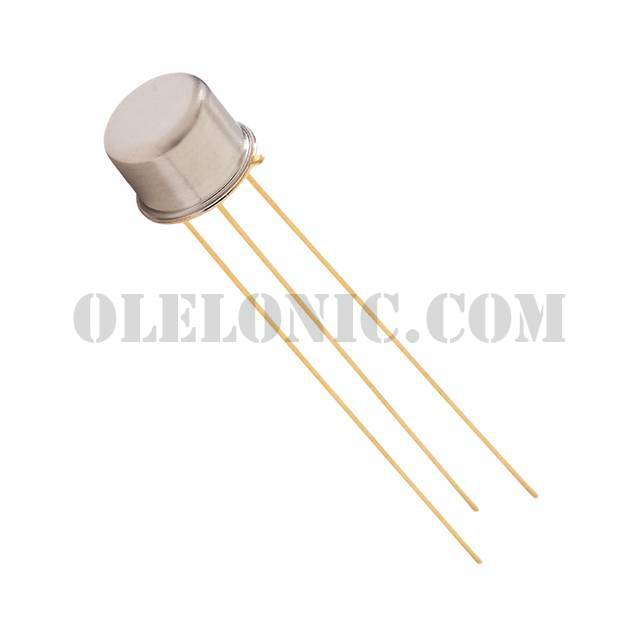

JANTX2N3868

JANTX2N3868

Part NumberJANTX2N3868

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP 60V 0.003A TO-5

Datasheet2N386x(S)

Package / CaseTO-205AA, TO-5-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 60V 3A 1W Through Hole TO-5

To learn about the specification of JANTX2N3868, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3868 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3868.
We are offering JANTX2N3868 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3868 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N386x(S)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/350
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 250mA, 2.5A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 1.5A, 2V
Power - Max	1W
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
