JANTX2N3700

JANTX2N3700

Part NumberJANTX2N3700

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 1A

Datasheet2N3700

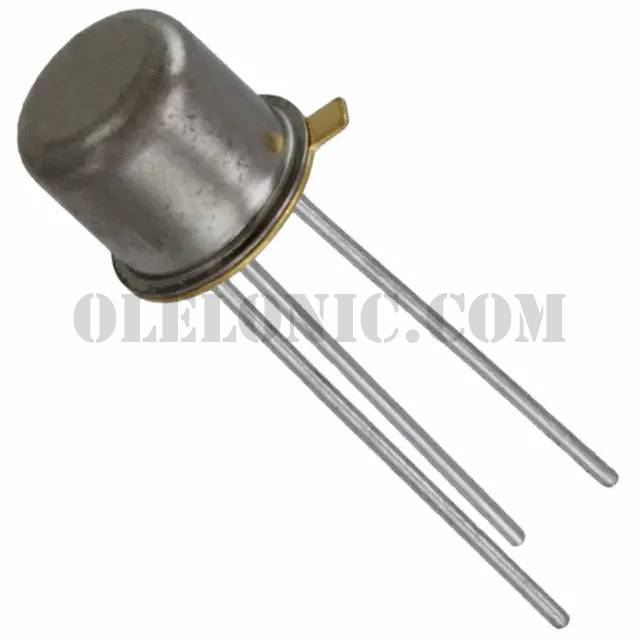

Package / CaseTO-206AA, TO-18-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 500mW Through Hole TO-18 (TO-206AA)

To learn about the specification of JANTX2N3700, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3700 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3700.
We are offering JANTX2N3700 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3700 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N3700
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/391
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	10nA
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 500mA, 10V
Power - Max	500mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-206AA, TO-18-3 Metal Can
Supplier Device Package	TO-18 (TO-206AA)
