JANTX2N2857

Part NumberJANTX2N2857

ManufacturerMicrosemi Corporation

DescriptionRF TRANS NPN 15V 500MHZ TO72

Datasheet2N2857

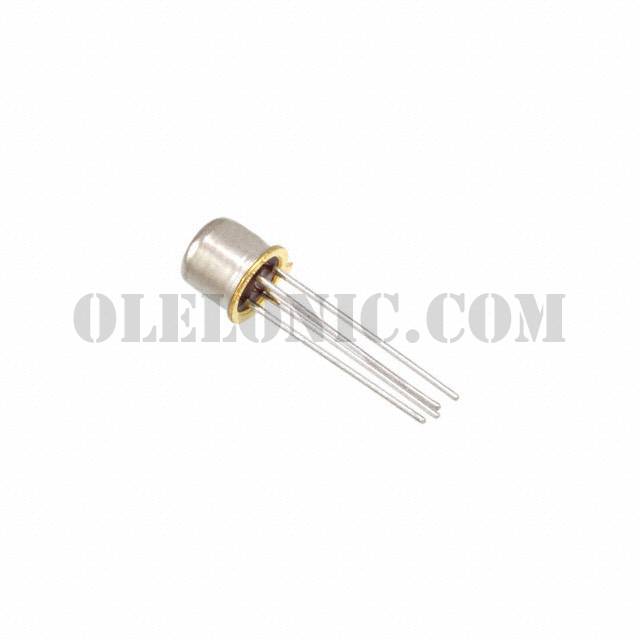

Package / CaseTO-72-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 15V 40mA 500MHz 200mW Through Hole TO-72

To learn about the specification of JANTX2N2857, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N2857 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N2857.
We are offering JANTX2N2857 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N2857 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

Datasheet

2N2857

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/343

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Voltage - Collector Emitter Breakdown (Max)

15V

Frequency - Transition

500MHz

Noise Figure (dB Typ @ f)

4.5dB @ 450MHz

Gain

12.5dB ~ 21dB @ 450MHz

Power - Max

200mW

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 3mA, 1V

Current - Collector (Ic) (Max)

40mA

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-72-3 Metal Can

Supplier Device Package

TO-72
