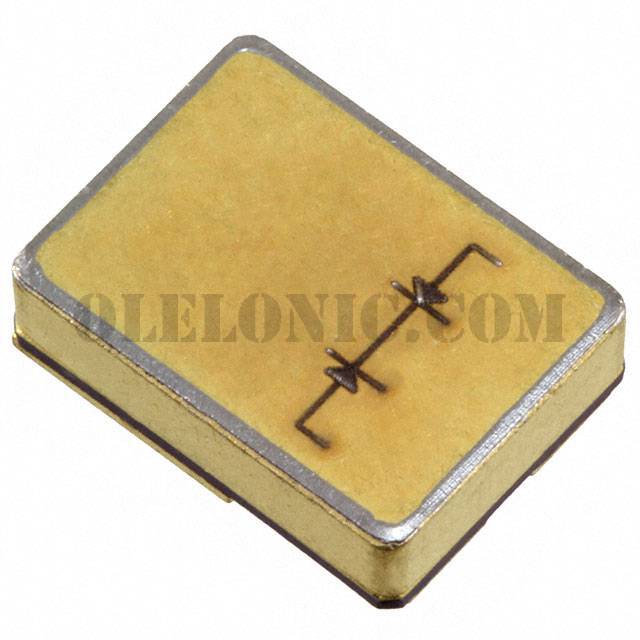

JANTX1N6843CCU3

Part NumberJANTX1N6843CCU3

ManufacturerMicrosemi Corporation

DescriptionDIODE SCHOTTKY 100V 15A SMD

Datasheet1N6843CCU3

Package / Case3-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 15A Surface Mount SMD

To learn about the specification of JANTX1N6843CCU3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N6843CCU3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N6843CCU3.
We are offering JANTX1N6843CCU3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N6843CCU3 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N6843CCU3

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/681

Packaging

Bulk

Part Status

Active

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

100V

Current - Average Rectified (Io)

15A

Voltage - Forward (Vf) (Max) @ If

1.27V @ 30A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

10µA @ 100V

Capacitance @ Vr, F

275pF @ 5V, 1MHz

Mounting Type

Surface Mount

Package / Case

3-SMD, Flat Leads

Supplier Device Package

SMD

Operating Temperature - Junction

-65°C ~ 150°C
