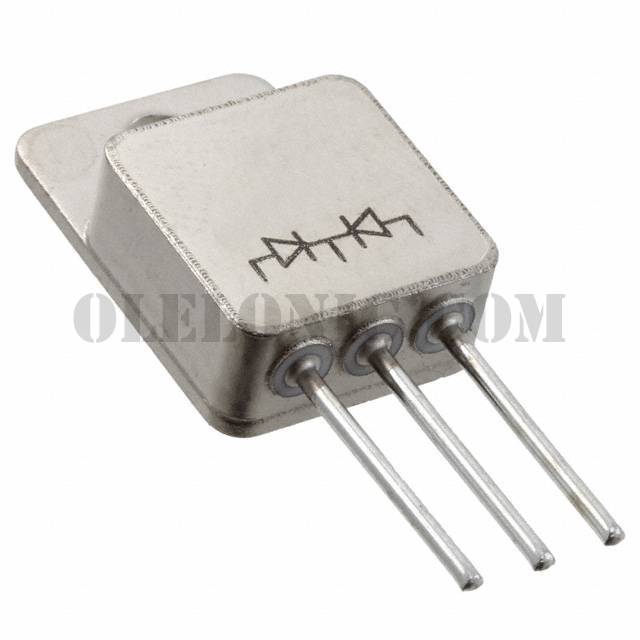

JANTX1N6660

Part NumberJANTX1N6660

ManufacturerMicrosemi Corporation

DescriptionDIODE ARRAY SCHOTTKY 45V TO254AA

Datasheet1N6660(x)

Package / CaseTO-254-3, TO-254AA (Straight Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 45V 15A Through Hole TO-254-3, TO-254AA (Straight Leads)

To learn about the specification of JANTX1N6660, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N6660 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N6660.
We are offering JANTX1N6660 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N6660 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

1N6660(x)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/608

Packaging

Bulk

Part Status

Active

Diode Configuration

1 Pair Common Cathode

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

45V

Current - Average Rectified (Io) (per Diode)

15A

Voltage - Forward (Vf) (Max) @ If

750mV @ 15A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

1mA @ 45V

Operating Temperature - Junction

150°C (Max)

Mounting Type

Through Hole

Package / Case

TO-254-3, TO-254AA (Straight Leads)

Supplier Device Package

TO-254AA

Base Part Number

1N6660
