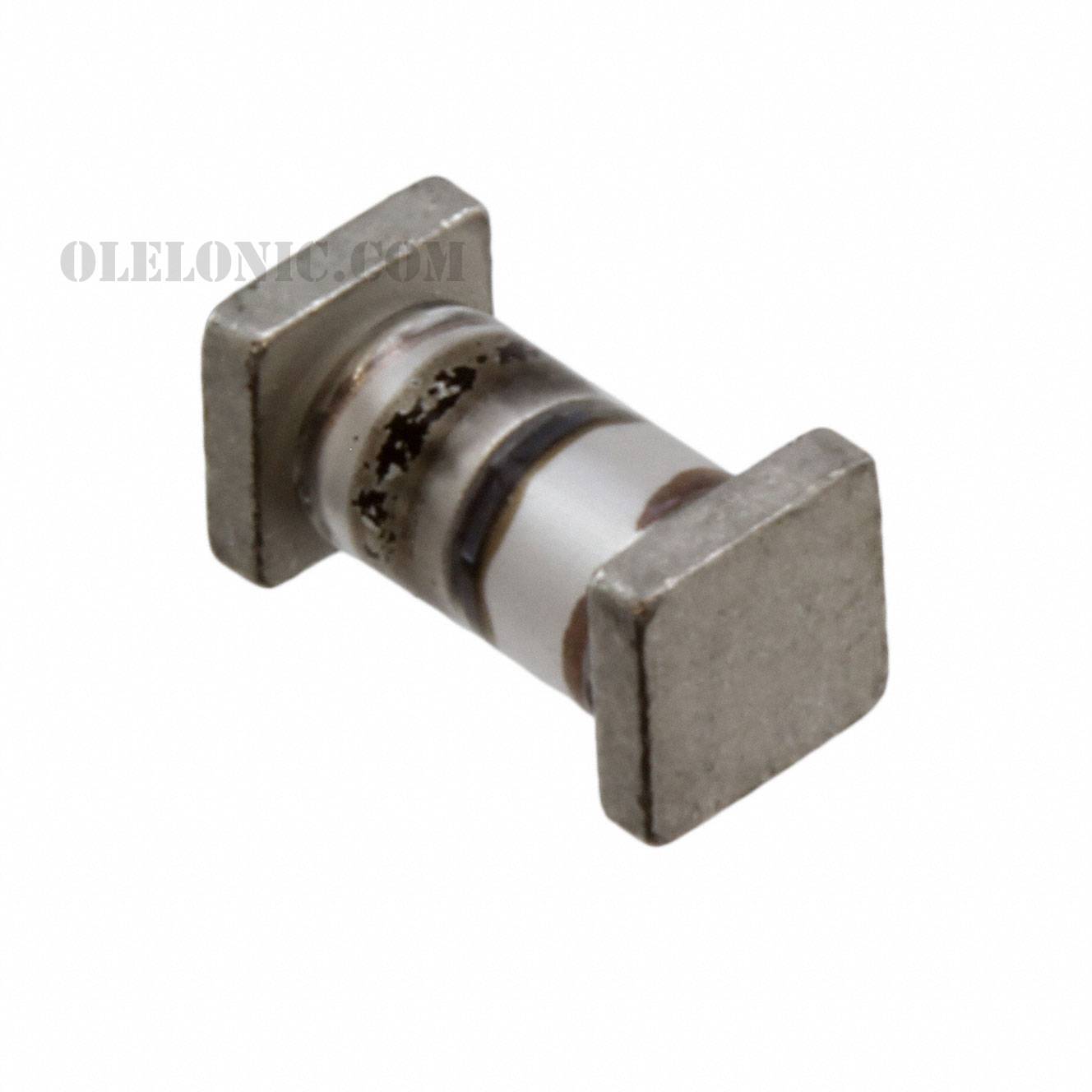

JANTX1N5616US

JANTX1N5616US

Part NumberJANTX1N5616US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 400V 1A D5A

Datasheet1N5614US thru 1N5622US

Package / CaseSQ-MELF, A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 400V 1A Surface Mount D-5A

To learn about the specification of JANTX1N5616US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N5616US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N5616US.
We are offering JANTX1N5616US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N5616US - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5614US thru 1N5622US
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/427
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	500nA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 200°C
