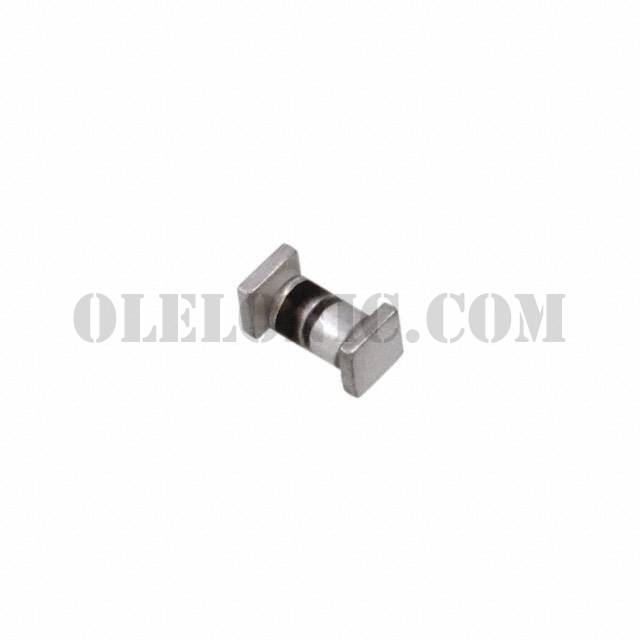

JANTX1N5614US

Part NumberJANTX1N5614US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 1A D5A

Datasheet1N5614US thru 1N5622US

Package / CaseSQ-MELF, A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Surface Mount D-5A

To learn about the specification of JANTX1N5614US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N5614US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N5614US.
We are offering JANTX1N5614US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N5614US - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5614US thru 1N5622US

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/437

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

200V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

1.3V @ 3A

Speed

Standard Recovery >500ns, > 200mA (Io)

Reverse Recovery Time (trr)

2µs

Current - Reverse Leakage @ Vr

500nA @ 200V

Capacitance @ Vr, F

Mounting Type

Surface Mount

Package / Case

SQ-MELF, A

Supplier Device Package

D-5A

Operating Temperature - Junction

-65°C ~ 200°C

Base Part Number

1N5614
