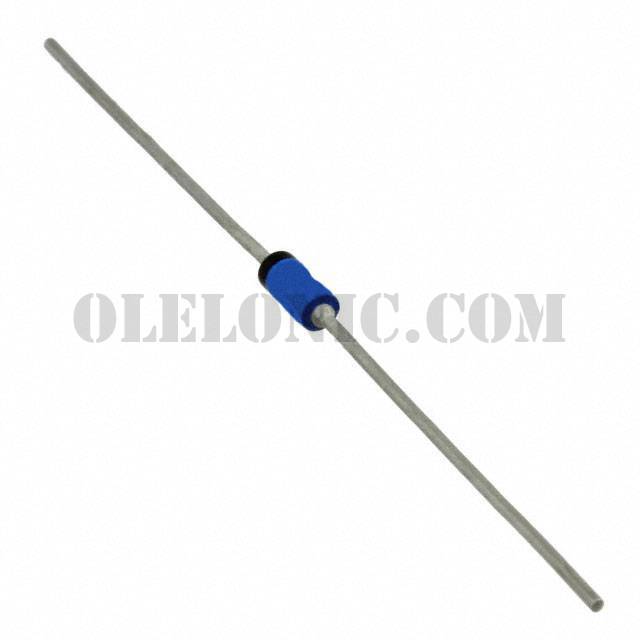

JANTX1N3644

JANTX1N3644

Part NumberJANTX1N3644

ManufacturerMicrosemi Corporation

DescriptionDIODE GP 1.5KV 250MA S AXIAL

Datasheet1N3643-47, 1N4254-57, 1N5181-84

Package / CaseS, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1500V 250mA Through Hole S, Axial

To learn about the specification of JANTX1N3644, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N3644 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N3644.
We are offering JANTX1N3644 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N3644 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N3643-47, 1N4254-57, 1N5181-84
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/279
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1500V
Current - Average Rectified (Io)	250mA
Voltage - Forward (Vf) (Max) @ If	5V @ 250mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 1500V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	S, Axial
Supplier Device Package	S, Axial
Operating Temperature - Junction	-65°C ~ 175°C
