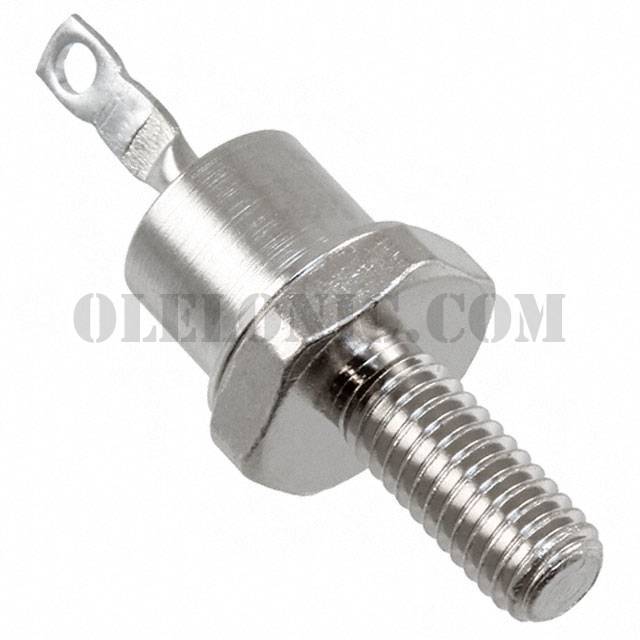

JANTX1N1614

Part NumberJANTX1N1614

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 15A DO203AA

Datasheet1N1614-16(R),1N4458-59(R)

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 15A Stud Mount DO-203AA

To learn about the specification of JANTX1N1614, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N1614 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N1614.
We are offering JANTX1N1614 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N1614 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N1614-16(R),1N4458-59(R)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/162

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

200V

Current - Average Rectified (Io)

15A

Voltage - Forward (Vf) (Max) @ If

1.5V @ 15A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

50µA @ 200V

Capacitance @ Vr, F

Mounting Type

Stud Mount

Package / Case

DO-203AA, DO-4, Stud

Supplier Device Package

DO-203AA

Operating Temperature - Junction

-65°C ~ 175°C
