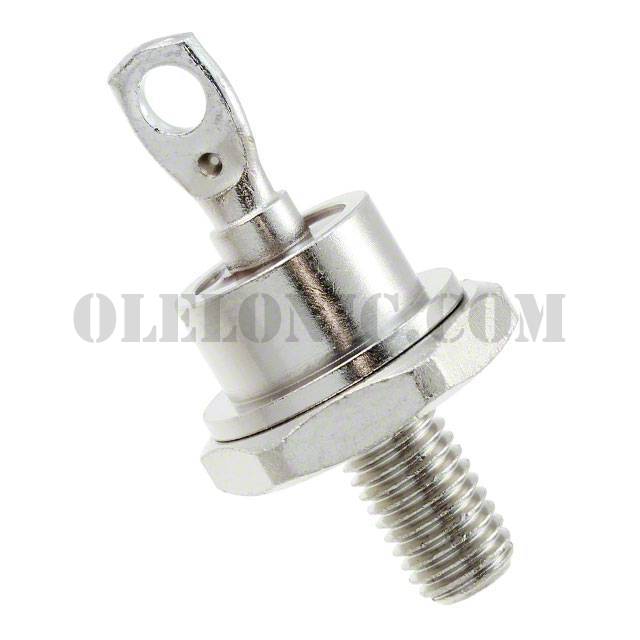

JANTX1N1190R

JANTX1N1190R

Part NumberJANTX1N1190R

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 600V 35A DO5

Datasheet1N1184,86,88,90;1N3766,68(R)

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 35A Stud Mount DO-5

To learn about the specification of JANTX1N1190R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N1190R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N1190R.
We are offering JANTX1N1190R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N1190R - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N1184,86,88,90;1N3766,68(R)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/297
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	35A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 110A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 175°C
