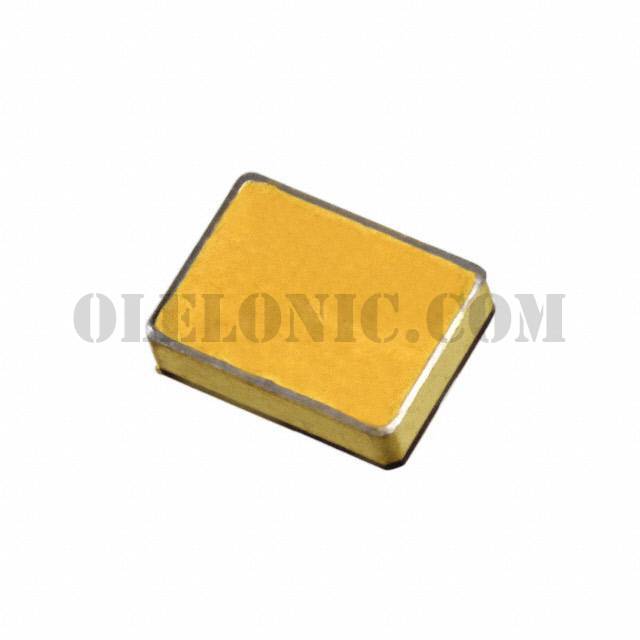

JANS2N5339U3

Part NumberJANS2N5339U3

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 100V 5A SMD5

Datasheet2N5339(U3)

Package / Case5-SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 100V 5A 1W Surface Mount SMD5

To learn about the specification of JANS2N5339U3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANS2N5339U3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANS2N5339U3.
We are offering JANS2N5339U3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANS2N5339U3 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N5339(U3)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/560

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

NPN

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

100V

Vce Saturation (Max) @ Ib, Ic

1.2V @ 500mA, 5A

Current - Collector Cutoff (Max)

100µA

DC Current Gain (hFE) (Min) @ Ic, Vce

60 @ 2A, 2V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Surface Mount

Package / Case

5-SMD

Supplier Device Package

SMD5
