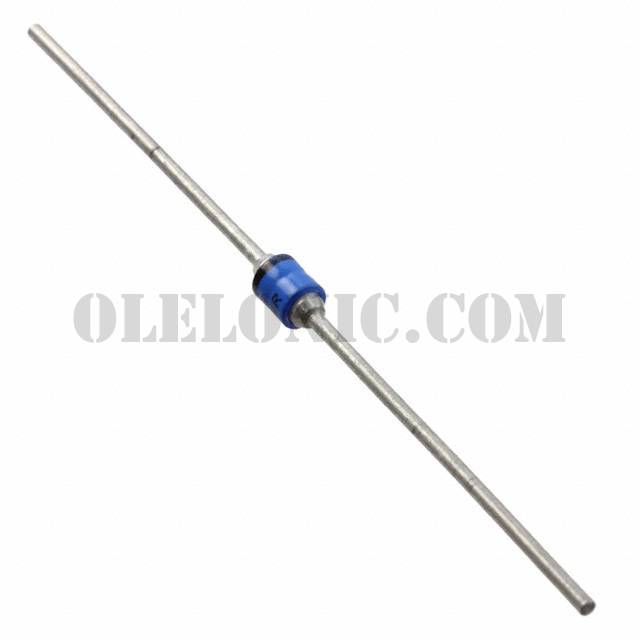

JANS1N5809

Part NumberJANS1N5809

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 100V 3A AXIAL

Datasheet1N5807,9,11

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 3A Through Hole

To learn about the specification of JANS1N5809, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANS1N5809 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANS1N5809.
We are offering JANS1N5809 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANS1N5809 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5807,9,11

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/477

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

100V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

875mV @ 4A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

30ns

Current - Reverse Leakage @ Vr

5µA @ 100V

Capacitance @ Vr, F

60pF @ 10V, 1MHz

Mounting Type

Through Hole

Package / Case

B, Axial

Operating Temperature - Junction

-65°C ~ 175°C
