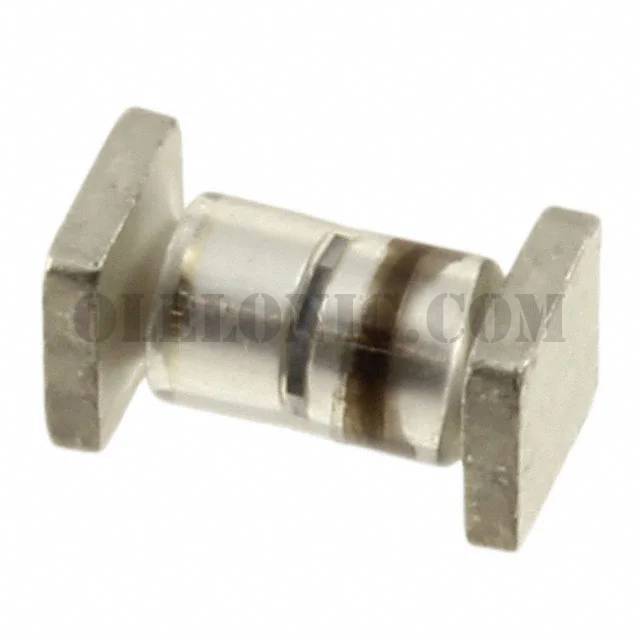

JANS1N5806US

Part NumberJANS1N5806US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 150V 1A D5A

Datasheet1N5802, 04US, 06US and URS

Package / CaseSQ-MELF, A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 1A Surface Mount D-5A

To learn about the specification of JANS1N5806US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANS1N5806US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANS1N5806US.
We are offering JANS1N5806US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANS1N5806US - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5802, 04US, 06US and URS

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/477

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

150V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

875mV @ 1A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

25ns

Current - Reverse Leakage @ Vr

1µA @ 150V

Capacitance @ Vr, F

25pF @ 10V, 1MHz

Mounting Type

Surface Mount

Package / Case

SQ-MELF, A

Supplier Device Package

D-5A

Operating Temperature - Junction

-65°C ~ 175°C
