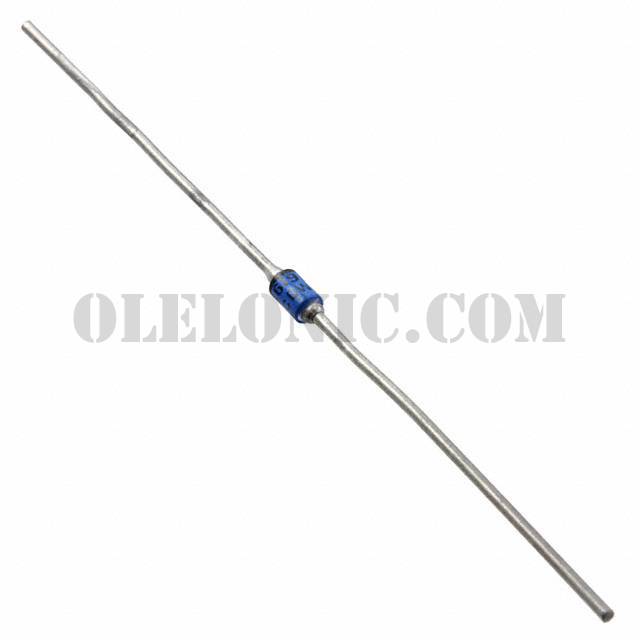

JANS1N5615

JANS1N5615

Part NumberJANS1N5615

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 1A AXIAL

Datasheet1N5615 - 1N5623

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Through Hole

To learn about the specification of JANS1N5615, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANS1N5615 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANS1N5615.
We are offering JANS1N5615 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANS1N5615 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5615 - 1N5623
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/429
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.6V @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	500nA @ 200V
Capacitance @ Vr, F	45pF @ 12V, 1MHz
Mounting Type	Through Hole
Package / Case	A, Axial
Operating Temperature - Junction	-65°C ~ 175°C
