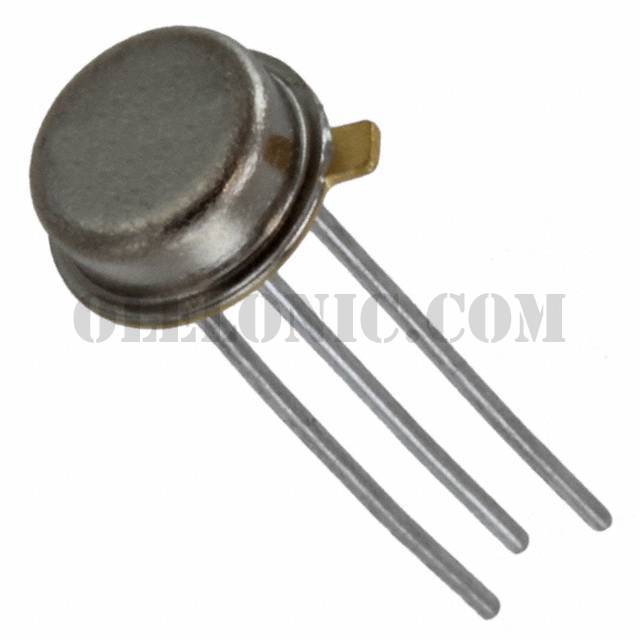

JAN2N3057A

Part NumberJAN2N3057A

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 1A TO46

Datasheet2N3057A

Package / CaseTO-206AB, TO-46-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 500mW Through Hole TO-46-3

To learn about the specification of JAN2N3057A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN2N3057A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN2N3057A.
We are offering JAN2N3057A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN2N3057A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3057A

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/391

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

NPN

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

500mV @ 50mA, 500mA

Current - Collector Cutoff (Max)

10nA

DC Current Gain (hFE) (Min) @ Ic, Vce

50 @ 500mA, 10V

Power - Max

500mW

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-206AB, TO-46-3 Metal Can

Supplier Device Package

TO-46-3
