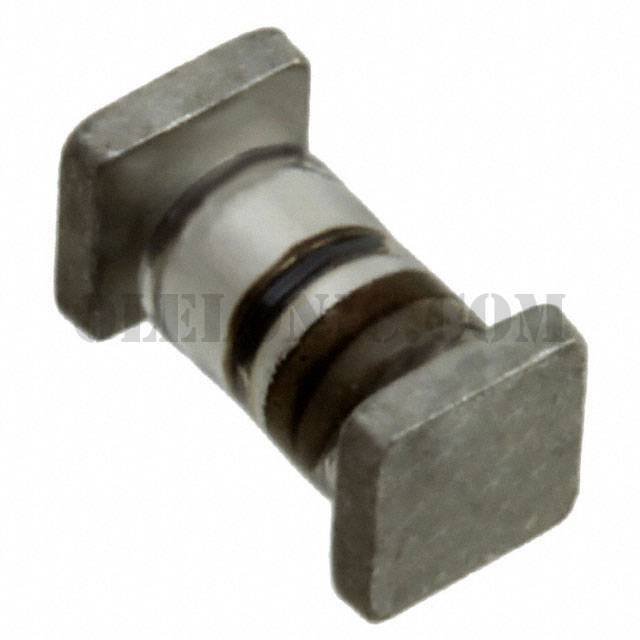

JAN1N5615US

JAN1N5615US

Part NumberJAN1N5615US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 1A D-5A

Datasheet1N5615US thru 1N5623US

Package / CaseSQ-MELF, A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Surface Mount D-5A

To learn about the specification of JAN1N5615US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N5615US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N5615US.
We are offering JAN1N5615US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N5615US - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5615US thru 1N5623US
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/429
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	800mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	500µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 200°C
