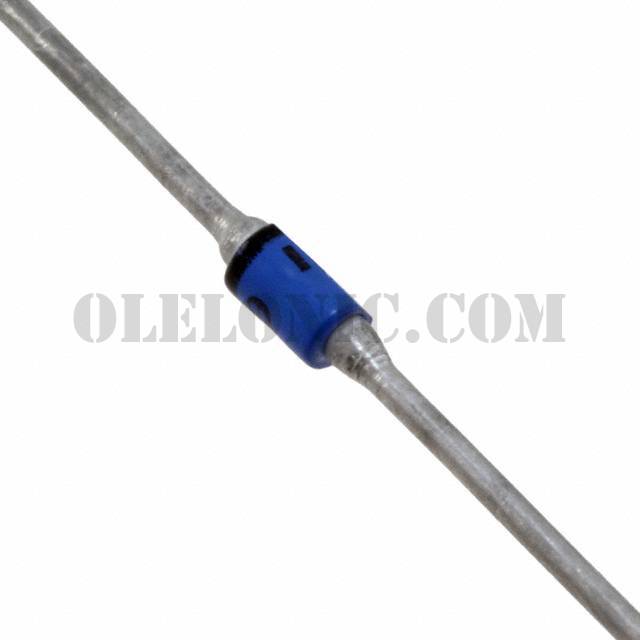

JAN1N3614

JAN1N3614

Part NumberJAN1N3614

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 800V 1A AXIAL

Datasheet1N36xx,1N3957

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 1A Through Hole

To learn about the specification of JAN1N3614, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N3614 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N3614.
We are offering JAN1N3614 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N3614 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N36xx,1N3957
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/228
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1µA @ 800V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Operating Temperature - Junction	-65°C ~ 175°C
