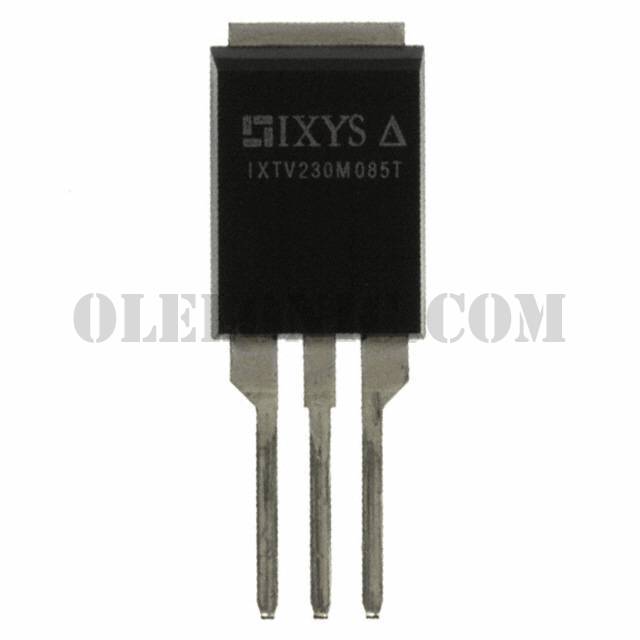

IXTV230N085T

Part NumberIXTV230N085T

ManufacturerIXYS

DescriptionMOSFET N-CH 85V 230A PLUS220

DatasheetIXTV230N085T(S)

Package / CaseTO-220-3, Short Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 85V 230A (Tc) 550W (Tc) Through Hole PLUS220

To learn about the specification of IXTV230N085T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTV230N085T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTV230N085T.
We are offering IXTV230N085T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTV230N085T - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXTV230N085T(S)

Standard Package

Manufacturer

IXYS

Series

TrenchMV™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

85V

Current - Continuous Drain (Id) @ 25°C

230A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

4.4mOhm @ 50A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

187nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

9900pF @ 25V

FET Feature

Power Dissipation (Max)

550W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PLUS220

Package / Case

TO-220-3, Short Tab
