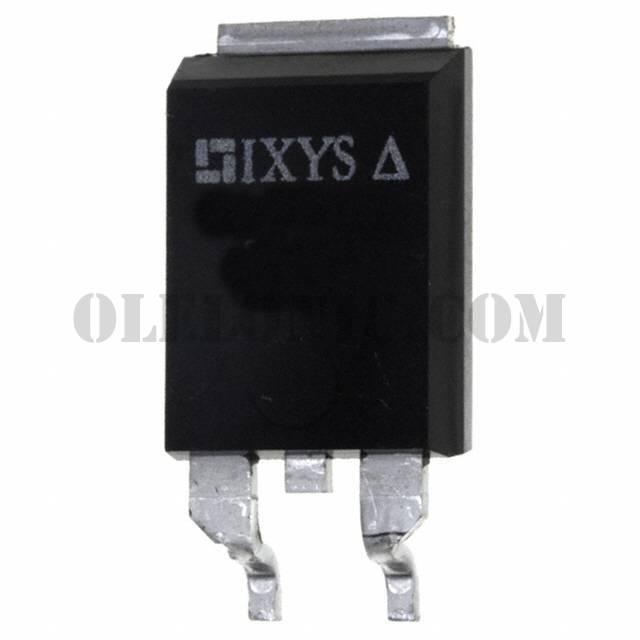

IXTV200N10TS

Part NumberIXTV200N10TS

ManufacturerIXYS

DescriptionMOSFET N-CH 100V 200A PLUS220SMD

DatasheetIXTV200N10T(S)

Package / CasePLUS-220SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 200A (Tc) 550W (Tc) Surface Mount PLUS-220SMD

To learn about the specification of IXTV200N10TS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTV200N10TS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTV200N10TS.
We are offering IXTV200N10TS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTV200N10TS - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

IXTV200N10T(S)

Standard Package

Manufacturer

IXYS

Series

TrenchMV™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

200A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

5.5mOhm @ 50A, 10V

Vgs(th) (Max) @ Id

4.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

152nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

9400pF @ 25V

FET Feature

Power Dissipation (Max)

550W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PLUS-220SMD

Package / Case
